Dosing Machine

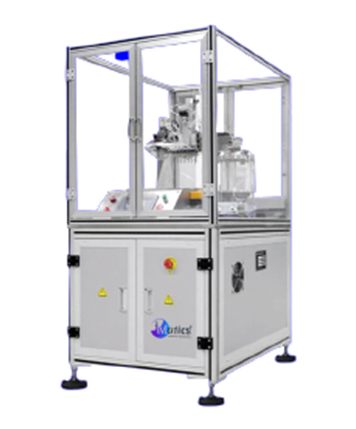

Coagulant BCA Dosing Machine

Product Description

This filling machine for blood collection tube is used for additive spraying

Application

Coagulant BCA dosing for blood collection tube.
Imported pinch valve, 10 nozzles;
Refined atomizing nozzles for the evenly spraying. Effect can be adjusted;
Servo control.

√ Automatic cleaning for the nozzles

√ Equipped with magnetic stirrer.

Product Parameters:

Production Capacity:	10,000-15,000 pcs/h
Tube Size:	*Ø1375mm; Ø13100mm; Ø16100mm**
Air Consumption:	0.2 m3/min
Power:	1.5W/AC220V
Overall dimension:	(L×W×H) 800×1100×1500mm

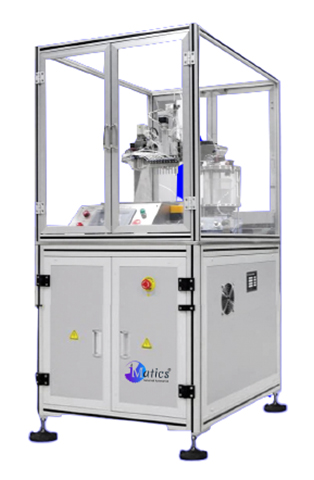

EDTA Dosing Machine

High accuracy ceramic metering pump dosing system, 5 nozzles or 10 nozzles optional; Refined atomizing nozzles for the evenly spraying. Effect can be adjusted;

Product Description:

This EDTA spraying machine is used for EDTAK2, EDTAK3, Heparin dosing spraying for blood collection tube.

High accuracy ceramic metering pump dosing system, 5 nozzles or 10 nozzles optional;
Refined atomizing nozzles for the evenly spraying. Effect can be adjusted;
Servo control.
√ Automatic cleaning for the nozzles
√ Equipped with magnetic stirrer

Product Parameters:

Production Capacity:	8,000-15,000 pcs/h
Tube Size:	*Ø1375mm; Ø13100mm; Ø16100mm**
Air Consumption:	0.2 m3/min
Power:	1.5W/AC220V
Overall dimension:	(L×W×H) 600×1100×1400mm

Sodium Citrate Dosing Machine

Product Description:

Blood Test Tube Filling Machine is used for sodium citrate dosingfilling. It uses imported pinch valve with 5 or 10 nozzles for effective, even spraying, and there is automatic cleaning device for the nozzles, easy and time-saving for maintaining. This Blood Test Tube Filling Machine is equipped with magnetic stirrer and refined atomizing nozzles, which can provide you more stable and quality working performance.

Features:

Blood Test Tube Filling Machine features its one bottom start, very easy to operate. It adopts servo control, which has the characteristics of high efficiency and stability. It also has detection for reagent storage tank, and it will start alarming automatically if there’s lack of reagent.

Product Parameters:

Production Capacity:	6,000-8,000 pcs/h
Tube Size:	*Ø1375mm; Ø13100mm; Ø16100mm**
Air Consumption:	0.2 m3/min
Power:	1.5W/AC220V
Overall dimension:	(L×W×H) 600×1100×1400mm
Voltage:	380V
