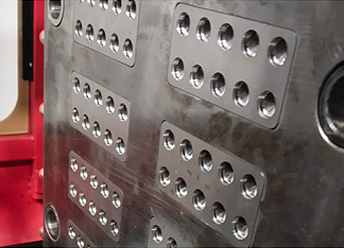

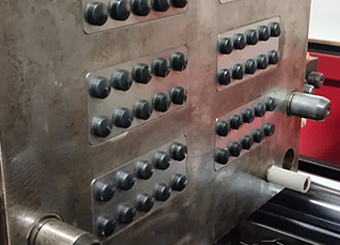

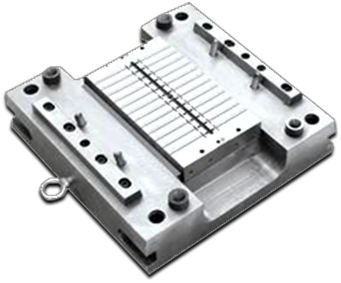

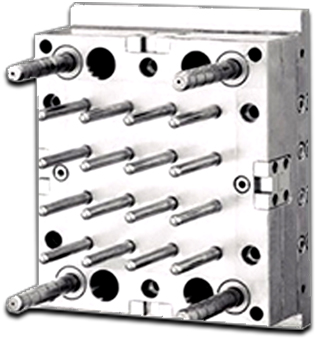

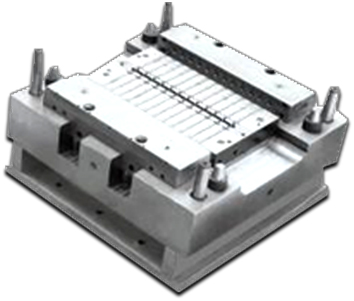

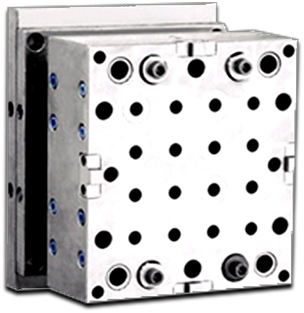

Syringe Moulds
Plastic injection molds designed exclusively for Syringe components. Mold sizes ranging from 8 cavity molds to 64 cavity molds.

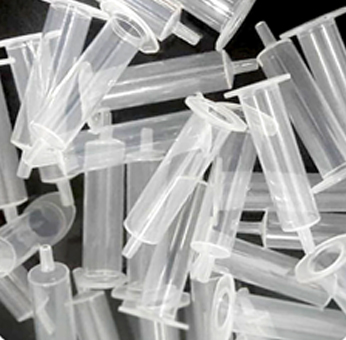

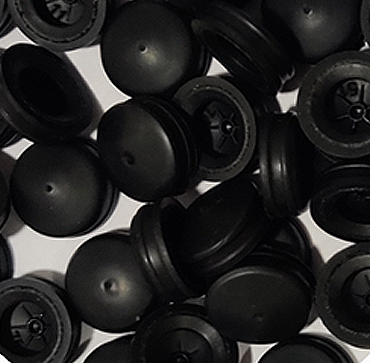

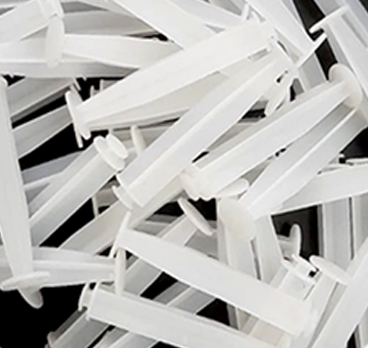

Components of Syringe: Barrel,Plunger and Gasket are designed as per international standards and ISO 7886 – 1 standard for syringes.
The components are designed to optimize raw material usage to give best cost effectiveness in syringe manufacturing
Main Technical Parameters
| Component Type: | 1ml,2ml, 3ml, 5ml, 10ml, 20ml & 50ml syringe Barrel, Plunger and Gasket. |
| Productivity: | No. of cavities ranging from 8 cavity moulds to 48 cavity moulds.
1,500 pcs/hour to 10,000 pcs/hour. |
| Material: | · EN8 Steel Mould base,
· C45/ P20 grade Core & Cavity plates, HDS H11/H13 Hardened Core & Cavity inserts. |
| Feeding System: | Cold runner mould with auto degating. |
| Cycle Time: | 15-18 seconds per shot. |
| Mould Life: | 5 million cycles. |
| Plastic Material: | · Poly propylene random copolymer for Barrel
· High Density Polyethylene / Poly propylene homo polymer for Plunger. Thermoplastic Elastomer (Block) for Gasket. |
| Overall dimension: | (L x W x H) 400x500x400mm |
| Weight: | 600 Kgs |
