Flow Wrap Packing Machines

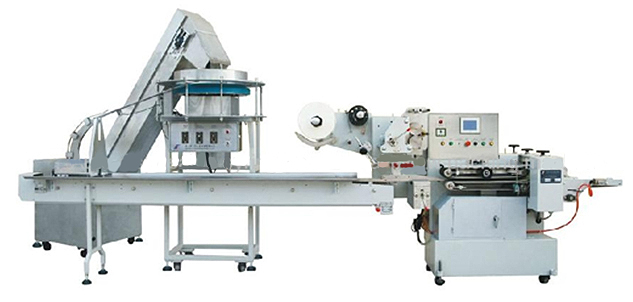

Flow Wrap Packing Machine with Automatic Syringe Loader/feeder
Brief Introduction:

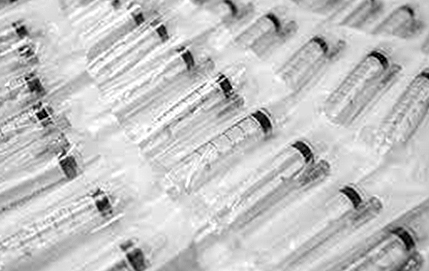

The main function of this flow wrapper is to perform a packet sealed around the product. The film is formed via a forming shoulder and then sealed as a center seal under the product and then transferred to the back and front sealer thereby forming a complete packet around the product. Paper ribbon is used for ensuring sterility of the syringe.
The machine is fully automated and consist of various control mechanisms to perform the full function.
Advantages:
- PLC / Controller to control the whole machine to reduce fault point and can display faults occurred through the screen, and the function of the human-computer dialogue is realized.
- For saving labour cost for needle fixed or without needle syringe packing can be made by the attachment of automatic feeding system.
- Easy & efficient operate. This machine can pack all kind of syringes
Main Technical Parameters:
| Production Capacity: | Up to 180 pcs/minute. |
| Max. Packing film width: | Up to 350mm |
| Product width: | 20-130mm |
| Packing Length cutting: | 100-350mm |
| Product Height: | 10-45mm |
| Power: | 3 Kw |
| Overall dimension: | (L x W x H) 3600x850x1500mm |
