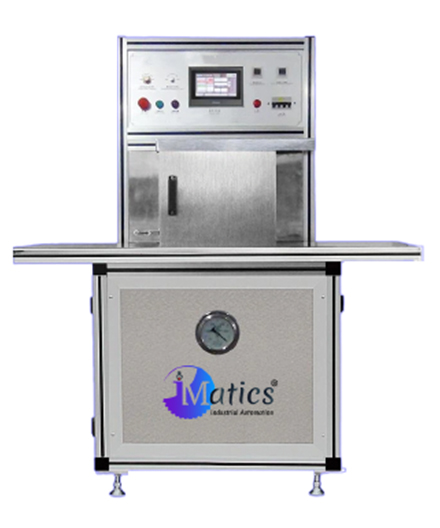

Vacuum & Cap Pressing Machine

This equipment is used for blood collection tube vacuuming.Inside of the tube will automatically produce a certain negative pressure.

Working Principle:

Manually put the mould rack with full tubes and caps into the mould rack moving  platform→press the start button the mould rack moving device automatically moves the  mould rack to the vacuum chamber→vacuumize and press the stopper → after the vacuum is  completed, the mould rack automatically moves out of the vacuum chamber to the mould  moving platform→manually take out the mould rack that has finished  vacuuming,thus completing a vacuuming operation.The vacuum control system adopts precise proportional control,and the vacuum is stable and accurate without interference from external  factors.

• Servoproportionaltechnology:directlyinputthecorrespondingvacuumvalueonthetouchscreen,you can get the corresponding vacuum degree product, the set value is almost the same as the displayed value,ensuring the vacuum repeatability.
• Database system: A powerful database function that can store the vacuum required for various altitudes,different blood collections, and different product specifications. It has production information storage
• 100 pcs/cycle,10 times digital control vacuum system.
• Tolerance of vacuum
